Core insert
3D body
Search reusable core geometry from prior mold families.
Quoting
Prepare quotes faster with visual search
VizSeek helps quoting teams match incoming RFQs to similar prior parts, drawings, tooling, and production history.
Quoting Search Workspace
Break down an incoming mold assembly and match reusable 3D components before building the quote
injection mold RFQ
Source assembly
RFQ package

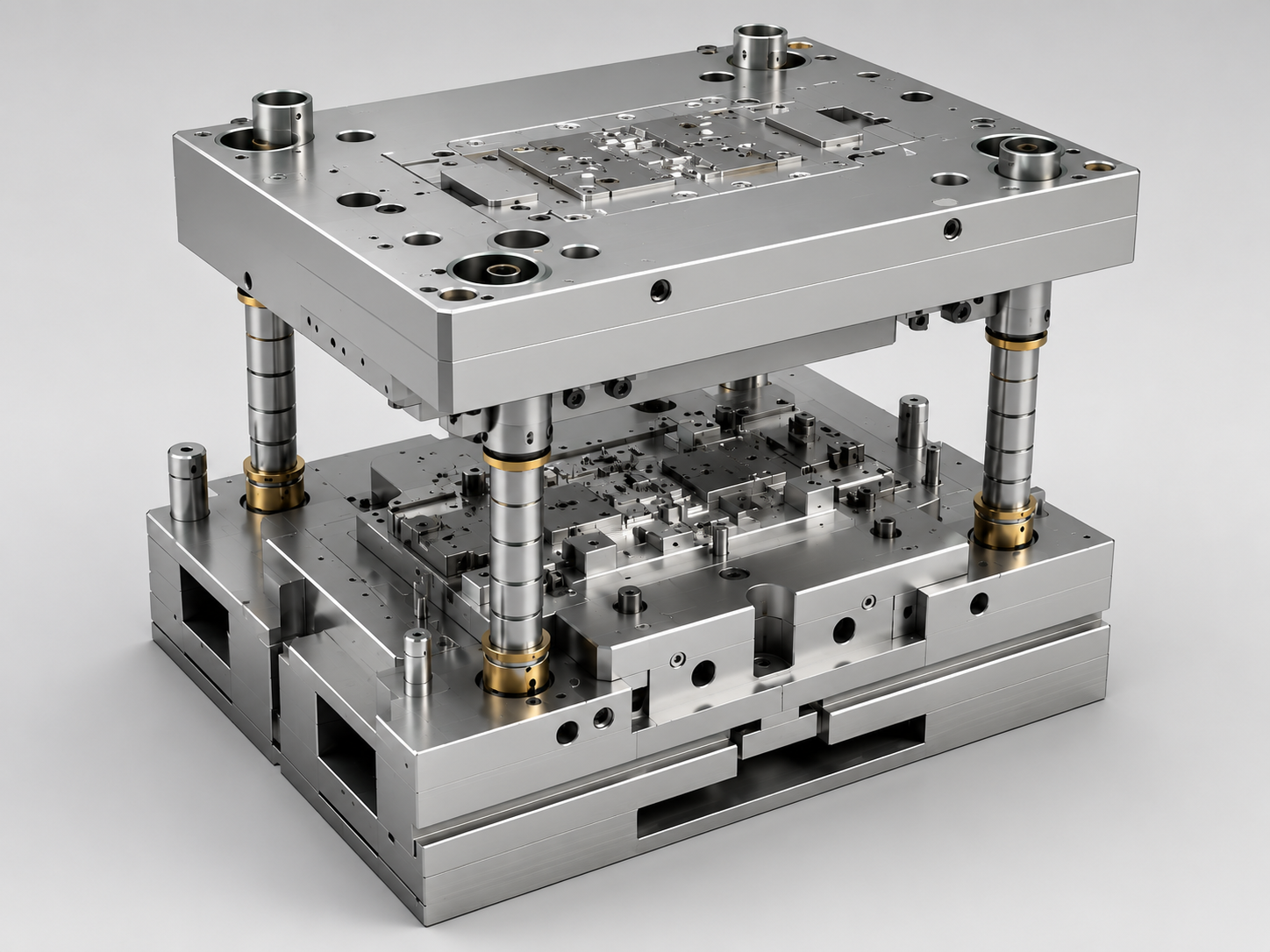

Mold assembly
Top plate + cavity + core + ejector components
3D model injection mold assembly + quoted steel base + cavity/core inserts + ejector hardware
Assembly ID
MOLD-RFQ-118
Requested output
Component-level matches
3D assembly RFQ ERP Prior jobs
Component breakdown
assembly decomposed for searchCavity insert
3D body
Find similar cavity blocks and steel stock history.
Ejector set
subassembly
Match pins, sleeves, and plate layouts from prior tooling.
Mold base
frame structure
Reuse standard base dimensions, plate stacks, and vendor options.
Matched 3D components
ranked by component similarityCORE-9183
Core insert match with prior steel grade, machine time, and tooling notes already linked.
3D component EDM history Tool steel
CAV-4421
Cavity insert result with similar shutoff geometry, finishing process, and prior quote reference.
3D component Quote record
BASE-2070
Standard mold base candidate with known supplier, cost history, and lead-time reference.
Supplier linked ERP cost
Quoting output
component-level evidenceEstimated reuse
4 reusable components
Supports faster costing, steel selection, and process planning.
Linked context
Prior jobs + cost records
Lets the quoting team ground the RFQ in real production history.
Quoting use case
RFQ search built for manufacturing
Instead of starting every RFQ from scratch, teams can search for visually similar jobs and use that history to support pricing, lead-time estimates, and manufacturability decisions.
Match new RFQs to prior work
Find related parts and historical quotes from engineering drawings or part images.
Improve quote confidence
Use known parts, prior costs, and supplier information to estimate more accurately.
Respond faster
Cut down manual lookup time and turn around quoting packages more quickly.
Quoting outcomes
Faster turnaround
Reduce time spent hunting for comparable parts and old jobs.
More consistent estimates
Base quoting decisions on prior work instead of fragmented memory.
Better supplier alignment
Connect similar parts to vendors and sourcing context.
Higher win rates
Respond quickly with better-informed quotes.
Need better RFQ search?
VizSeek helps quoting teams use prior work as an advantage.
